Multi-Sensor

Tools for analysing relationships between multiple measurement channels: correlation matrices, coherence matrices, the cross-spectral density matrix (input to FDD), and the conditioned forms — multiple and partial coherence — that answer whether a channel is redundant given the rest of the array.

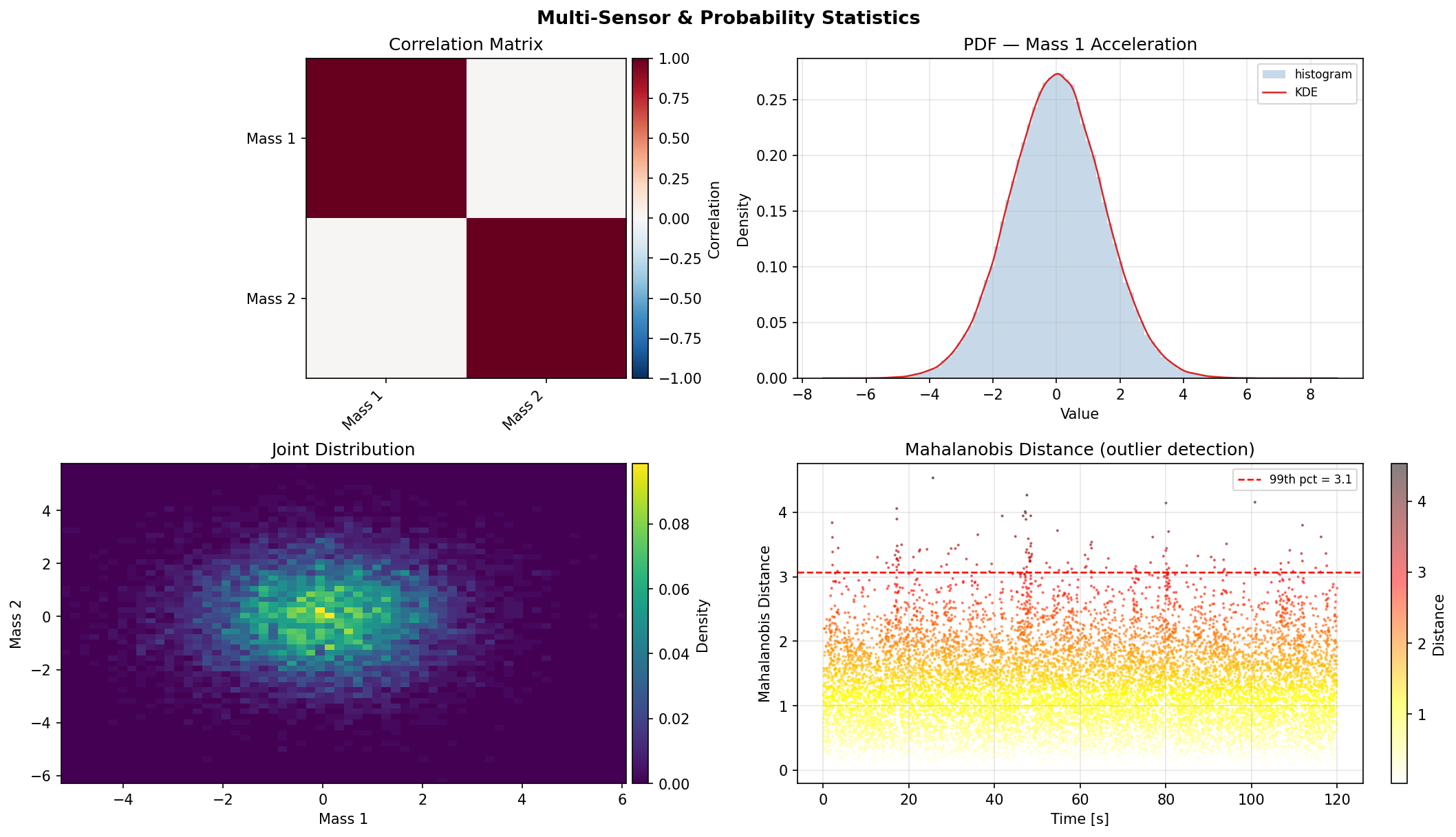

Multi-sensor example

`dspkit.multisensor.correlation_matrix(data)`

Pairwise Pearson correlation matrix for multi-channel data.

Parameters:

Name	Type	Description	Default
`data`	`(array_like, shape(n_channels, N))`	Each row is a time series from one sensor.	required

Returns:

Name	Type	Description
`R`	`(ndarray, shape(n_channels, n_channels))`	Correlation matrix with values in [-1, 1]. `R[i, j]` is the Pearson correlation coefficient between channels `i` and `j`.

Source code in dspkit/multisensor.py

def correlation_matrix(
    data: np.ndarray,
) -> np.ndarray:
    """
    Pairwise Pearson correlation matrix for multi-channel data.

    Parameters
    ----------
    data : array_like, shape (n_channels, N)
        Each row is a time series from one sensor.

    Returns
    -------
    R : ndarray, shape (n_channels, n_channels)
        Correlation matrix with values in [-1, 1].
        ``R[i, j]`` is the Pearson correlation coefficient between
        channels ``i`` and ``j``.
    """
    data = np.atleast_2d(np.asarray(data, dtype=float))
    return np.corrcoef(data)

`dspkit.multisensor.coherence_matrix(data, fs, window='hann', nperseg=None, noverlap=None, detrend='constant', min_segments=8)`

Pairwise magnitude-squared coherence matrix.

Parameters:

Name	Type	Description	Default
`data`	`(array_like, shape(n_channels, N))`	Each row is a time series from one sensor.	required
`fs`	`float`	Sampling frequency [Hz].	required
`window`	`str`	Window function (default `'hann'`).	`'hann'`
`nperseg`	`int or None`	Welch segment length. Defaults to `min(N, 1024)`.	`None`
`noverlap`	`int or None`	Overlap between segments.	`None`
`detrend`	`str or False`	Per-segment detrending.	`'constant'`
`min_segments`	`int`	Warn below this many Welch segments (default 8). Fewer than two segments raises instead — see Notes.	`8`

Returns:

Name	Type	Description
`freqs`	`(ndarray, shape(M))`	Frequency vector [Hz].
`C`	`(ndarray, shape(n_channels, n_channels, M))`	Coherence matrix. `C[i, j, :]` is the magnitude-squared coherence between channels `i` and `j`. Diagonal entries are 1.0.

Raises:

Type	Description
`ValueError`	If the parameters give fewer than two Welch segments, in which case every off-diagonal entry would be identically 1.0 by construction. See `dspkit.spectral.coherence` for the full explanation.

Notes

Every entry here is a pairwise coherence: channels i and j are compared with the rest of the array ignored, so a pair that only looks related because both follow a third channel looks exactly like a pair that is directly related. partial_coherence is the same matrix with the other channels conditioned out, and is the one to read when the array has more than two sensors.

`dspkit.multisensor.psd_matrix(data, fs, window='hann', nperseg=None, noverlap=None, detrend='constant')`

Cross-spectral density matrix (power spectral density matrix).

Computes the full n_channels × n_channels CSD matrix at each frequency. This is the input required for Frequency Domain Decomposition (FDD).

The matrix is Hermitian at each frequency: G[i,j,f] = conj(G[j,i,f]). Diagonal entries G[i,i,f] are real-valued (auto-PSD).

Parameters:

Name	Type	Description	Default
`data`	`(array_like, shape(n_channels, N))`	Each row is a time series from one sensor.	required
`fs`	`float`	Sampling frequency [Hz].	required
`window`	`str`	Window function (default `'hann'`).	`'hann'`
`nperseg`	`int or None`	Welch segment length. Defaults to `min(N, 1024)`.	`None`
`noverlap`	`int or None`	Overlap between segments.	`None`
`detrend`	`str or False`	Per-segment detrending.	`'constant'`

Returns:

Name	Type	Description
`freqs`	`(ndarray, shape(M))`	Frequency vector [Hz].
`G`	`(ndarray, shape(n_channels, n_channels, M), complex)`	Cross-spectral density matrix. `G[i, j, k]` is the CSD between channels `i` and `j` at frequency `freqs[k]`.

Source code in dspkit/multisensor.py

def psd_matrix(
    data: np.ndarray,
    fs: float,
    window: str = "hann",
    nperseg: int | None = None,
    noverlap: int | None = None,
    detrend: str | Literal[False] = "constant",
) -> tuple[np.ndarray, np.ndarray]:
    """
    Cross-spectral density matrix (power spectral density matrix).

    Computes the full n_channels × n_channels CSD matrix at each frequency.
    This is the input required for Frequency Domain Decomposition (FDD).

    The matrix is Hermitian at each frequency: ``G[i,j,f] = conj(G[j,i,f])``.
    Diagonal entries ``G[i,i,f]`` are real-valued (auto-PSD).

    Parameters
    ----------
    data : array_like, shape (n_channels, N)
        Each row is a time series from one sensor.
    fs : float
        Sampling frequency [Hz].
    window : str
        Window function (default ``'hann'``).
    nperseg : int or None
        Welch segment length. Defaults to ``min(N, 1024)``.
    noverlap : int or None
        Overlap between segments.
    detrend : str or False
        Per-segment detrending.

    Returns
    -------
    freqs : ndarray, shape (M,)
        Frequency vector [Hz].
    G : ndarray, shape (n_channels, n_channels, M), complex
        Cross-spectral density matrix. ``G[i, j, k]`` is the CSD between
        channels ``i`` and ``j`` at frequency ``freqs[k]``.
    """
    data = np.atleast_2d(np.asarray(data, dtype=float))
    n_ch, N = data.shape

    if nperseg is None:
        nperseg = min(N, 1024)

    # Get frequency vector length
    freqs, _ = _signal.csd(
        data[0], data[0], fs=fs, window=window,
        nperseg=nperseg, noverlap=noverlap, detrend=detrend,
    )
    M = len(freqs)
    G = np.zeros((n_ch, n_ch, M), dtype=complex)

    for i in range(n_ch):
        for j in range(i, n_ch):
            _, Gij = _signal.csd(
                data[i], data[j], fs=fs, window=window,
                nperseg=nperseg, noverlap=noverlap, detrend=detrend,
            )
            G[i, j, :] = Gij
            if i != j:
                G[j, i, :] = np.conj(Gij)

    return freqs, G

`dspkit.multisensor.multiple_coherence(data, fs, window='hann', nperseg=None, noverlap=None, detrend='constant', ridge=1e-10, min_segments=None)`

Multiple coherence: each channel against all the others, per frequency.

gamma_i²(f) = 1 - 1 / (G_ii(f) · inv(G)(f)_ii) — the fraction of channel i's power at frequency f that a linear combination of every other channel accounts for. It is the frequency-domain coefficient of determination of channel i regressed on the rest of the array, and it answers "is this sensor redundant?" in the only form that question has a defensible answer: as a curve, not a score.

Parameters:

Name	Type	Description	Default
`data`	`(array_like, shape(n_channels, N))`	Each row is a time series from one sensor.	required
`fs`	`float`	Sampling frequency [Hz].	required
`window`	`str`	Window function (default `'hann'`).	`'hann'`
`nperseg`	`int or None`	Welch segment length. Defaults to `min(N, 1024)`.	`None`
`noverlap`	`int or None`	Overlap between segments. Defaults to `nperseg // 2`.	`None`
`detrend`	`str or False`	Per-segment detrending.	`'constant'`
`ridge`	`float`	Ridge added to the unit diagonal of the normalised CSD matrix before inversion (default 1e-10). See Notes — this is a numerical floor, not a statistical shrinkage.	`1e-10`
`min_segments`	`int or None`	Warn below this many Welch segments. Defaults to `5 * n_channels`. At or below `n_channels` segments the function raises instead.	`None`

Returns:

Name	Type	Description
`freqs`	`(ndarray, shape(M))`	Frequency vector [Hz].
`gamma2`	`(ndarray, shape(n_channels, M))`	Multiple coherence of each channel against all the others, in [0, 1].

Raises:

Type	Description
`ValueError`	If the Welch parameters give `n_segments <= n_channels`, where the CSD matrix is singular at every frequency and the result would be identically 1.0.

Notes

Regularisation. The matrix is inverted with a ridge, not with numpy.linalg.pinv. The reason is the case this function exists to detect: when a channel is an exact linear combination of the others, G is exactly rank-deficient, and the true multiple coherence is 1 — which requires inv(G)_ii -> inf. A pseudo-inverse truncates precisely that direction and returns a finite inv(G)_ii, small enough that the formula goes negative (measured: -0.6 to -2.9 on three channels where the third is the sum of the first two), which a clip to [0, 1] would then present as 0.0 — the most redundant array that can exist, reported as perfectly independent. A ridge keeps the limit intact and returns 1 - O(ridge). The default 1e-10 bounds the condition number at about 1e10, which float64 absorbs; raise it if the inverse looks noisy, at the cost of biasing values away from 1 by roughly that amount.

The bias floor is the number to compare against, not zero. With q = n_channels - 1 other channels and n_d Welch segments, the expected multiple coherence of independent channels is about q / n_d. Measured on four independent noise channels, N = 20480::

n_d =  3   mean 1.000     (q / n_d = 1.00, and G is singular here)
n_d =  4   mean 0.759     (0.75)
n_d =  9   mean 0.343     (0.33)
n_d = 19   mean 0.167     (0.16)
n_d = 39   mean 0.079     (0.077)

That one formula covers both the noise floor and the failure mode: it reaches 1.0 exactly at n_d = q, which is where the matrix goes singular, so "every coherence comes back at 1.0" is the same statement as "the floor has risen to 1". At n_d = n_channels the matrix is invertible again but the fit has no residual degrees of freedom, so the values are still meaningless — hence the refusal at n_d <= n_channels rather than only below it. This function reports the curve, not the excess over the floor; the floor is yours to subtract, and min_segments warns while it is large.

What this will not tell you: which of the other channels does the explaining (use partial_coherence), whether the relationship is causal, or whether a low value means independence or a nonlinear relationship that no linear predictor can reach (see dspkit.statistics.mutual_information). It is also blind to any redundancy that only appears outside the analysis band, and it says nothing about whether a redundant sensor is worth keeping — a duplicate channel is redundant and also the only thing that will catch the other one failing.

See Also

partial_coherence, coherence_matrix, psd_matrix

Examples:

>>> import numpy as np
>>> from dspkit.multisensor import multiple_coherence
>>> rng = np.random.default_rng(0)
>>> x, y, w = rng.normal(size=(3, 20000))
>>> data = np.vstack([x, y, x + y, w])   # channel 2 is x + y, channel 3 is not
>>> f, g2 = multiple_coherence(data, 1000.0, nperseg=256)
>>> bool(np.median(g2[2]) > 0.99), bool(np.median(g2[3]) < 0.1)
(True, True)

Source code in dspkit/multisensor.py

def multiple_coherence(
    data: np.ndarray,
    fs: float,
    window: str = "hann",
    nperseg: int | None = None,
    noverlap: int | None = None,
    detrend: str | Literal[False] = "constant",
    ridge: float = 1e-10,
    min_segments: int | None = None,
) -> tuple[np.ndarray, np.ndarray]:
    """
    Multiple coherence: each channel against all the others, per frequency.

    ``gamma_i²(f) = 1 - 1 / (G_ii(f) · inv(G)(f)_ii)`` — the fraction of
    channel *i*'s power at frequency *f* that a linear combination of every
    other channel accounts for. It is the frequency-domain coefficient of
    determination of channel *i* regressed on the rest of the array, and it
    answers "is this sensor redundant?" in the only form that question has a
    defensible answer: as a curve, not a score.

    Parameters
    ----------
    data : array_like, shape (n_channels, N)
        Each row is a time series from one sensor.
    fs : float
        Sampling frequency [Hz].
    window : str
        Window function (default ``'hann'``).
    nperseg : int or None
        Welch segment length. Defaults to ``min(N, 1024)``.
    noverlap : int or None
        Overlap between segments. Defaults to ``nperseg // 2``.
    detrend : str or False
        Per-segment detrending.
    ridge : float
        Ridge added to the unit diagonal of the normalised CSD matrix before
        inversion (default 1e-10). See Notes — this is a numerical floor, not
        a statistical shrinkage.
    min_segments : int or None
        Warn below this many Welch segments. Defaults to ``5 * n_channels``.
        At or below ``n_channels`` segments the function raises instead.

    Returns
    -------
    freqs : ndarray, shape (M,)
        Frequency vector [Hz].
    gamma2 : ndarray, shape (n_channels, M)
        Multiple coherence of each channel against all the others, in [0, 1].

    Raises
    ------
    ValueError
        If the Welch parameters give ``n_segments <= n_channels``, where the
        CSD matrix is singular at every frequency and the result would be
        identically 1.0.

    Notes
    -----
    **Regularisation.** The matrix is inverted with a ridge, not with
    ``numpy.linalg.pinv``. The reason is the case this function exists to
    detect: when a channel is an exact linear combination of the others, G is
    exactly rank-deficient, and the true multiple coherence is 1 — which
    requires ``inv(G)_ii -> inf``. A pseudo-inverse truncates precisely that
    direction and returns a *finite* ``inv(G)_ii``, small enough that the
    formula goes **negative** (measured: -0.6 to -2.9 on three channels where
    the third is the sum of the first two), which a clip to [0, 1] would then
    present as 0.0 — the most redundant array that can exist, reported as
    perfectly independent. A ridge keeps the limit intact and returns
    ``1 - O(ridge)``. The default 1e-10 bounds the condition number at about
    1e10, which float64 absorbs; raise it if the inverse looks noisy, at the
    cost of biasing values away from 1 by roughly that amount.

    **The bias floor is the number to compare against, not zero.** With
    ``q = n_channels - 1`` other channels and ``n_d`` Welch segments, the
    expected multiple coherence of *independent* channels is about
    ``q / n_d``. Measured on four independent noise channels, N = 20480::

        n_d =  3   mean 1.000     (q / n_d = 1.00, and G is singular here)
        n_d =  4   mean 0.759     (0.75)
        n_d =  9   mean 0.343     (0.33)
        n_d = 19   mean 0.167     (0.16)
        n_d = 39   mean 0.079     (0.077)

    That one formula covers both the noise floor and the failure mode: it
    reaches 1.0 exactly at ``n_d = q``, which is where the matrix goes
    singular, so "every coherence comes back at 1.0" is the same statement as
    "the floor has risen to 1". At ``n_d = n_channels`` the matrix is
    invertible again but the fit has no residual degrees of freedom, so the
    values are still meaningless — hence the refusal at ``n_d <= n_channels``
    rather than only below it. This function reports the curve, not the excess
    over the floor; the floor is yours to subtract, and ``min_segments`` warns
    while it is large.

    What this will not tell you: which of the other channels does the
    explaining (use ``partial_coherence``), whether the relationship is
    causal, or whether a low value means independence or a nonlinear
    relationship that no linear predictor can reach (see
    ``dspkit.statistics.mutual_information``). It is also blind to any
    redundancy that only appears outside the analysis band, and it says
    nothing about whether a redundant sensor is worth keeping — a duplicate
    channel is redundant and also the only thing that will catch the other
    one failing.

    See Also
    --------
    partial_coherence, coherence_matrix, psd_matrix

    Examples
    --------
    >>> import numpy as np
    >>> from dspkit.multisensor import multiple_coherence
    >>> rng = np.random.default_rng(0)
    >>> x, y, w = rng.normal(size=(3, 20000))
    >>> data = np.vstack([x, y, x + y, w])   # channel 2 is x + y, channel 3 is not
    >>> f, g2 = multiple_coherence(data, 1000.0, nperseg=256)
    >>> bool(np.median(g2[2]) > 0.99), bool(np.median(g2[3]) < 0.1)
    (True, True)
    """
    freqs, Ghat_reg, Ghat_inv, n_ch = _conditioned_inverse_from_data(
        "multiple_coherence", data, fs, window, nperseg, noverlap,
        detrend, ridge, min_segments,
    )
    idx = np.arange(n_ch)
    diag_reg = np.real(Ghat_reg[:, idx, idx])   # (M, n_ch), equals 1 + ridge
    diag_inv = np.real(Ghat_inv[:, idx, idx])   # (M, n_ch)

    gamma2 = 1.0 - 1.0 / (diag_reg * diag_inv)

    # Cauchy-Schwarz makes G_ii · inv(G)_ii >= 1 for any positive-definite G,
    # so gamma2 cannot truly leave [0, 1]. Only float error in the inverse can
    # push it out, by ~1e-12; this clip absorbs that and hides nothing real.
    return freqs, np.clip(gamma2, 0.0, 1.0).T

`dspkit.multisensor.partial_coherence(data, fs, window='hann', nperseg=None, noverlap=None, detrend='constant', ridge=1e-10, min_segments=None)`

Partial coherence: pairwise, with every other channel conditioned out.

gamma_ij²(f) = |inv(G)_ij|² / (inv(G)_ii · inv(G)_jj) — the coherence that survives after the linear contribution of the remaining channels has been removed from both i and j. Where coherence_matrix cannot tell a direct relationship from one mediated by a third sensor, this can: for a chain x -> y -> z the ordinary coherence of x and z is high, while their partial coherence given y falls to the noise floor.

Parameters:

Name	Type	Description	Default
`data`	`(array_like, shape(n_channels, N))`	Each row is a time series from one sensor.	required
`fs`	`float`	Sampling frequency [Hz].	required
`window`	`str`	Window function (default `'hann'`).	`'hann'`
`nperseg`	`int or None`	Welch segment length. Defaults to `min(N, 1024)`.	`None`
`noverlap`	`int or None`	Overlap between segments. Defaults to `nperseg // 2`.	`None`
`detrend`	`str or False`	Per-segment detrending.	`'constant'`
`ridge`	`float`	Ridge added to the unit diagonal of the normalised CSD matrix before inversion (default 1e-10). See `multiple_coherence` for why a ridge rather than a pseudo-inverse.	`1e-10`
`min_segments`	`int or None`	Warn below this many Welch segments. Defaults to `5 * n_channels`. At or below `n_channels` segments the function raises instead.	`None`

Returns:

Name	Type	Description
`freqs`	`(ndarray, shape(M))`	Frequency vector [Hz].
`C`	`(ndarray, shape(n_channels, n_channels, M))`	Partial coherence matrix, mirroring `coherence_matrix`. `C[i, j, :]` is the partial coherence of channels `i` and `j` given all the others; the diagonal is 1.0 and the matrix is symmetric.

Raises:

Type	Description
`ValueError`	If the Welch parameters give `n_segments <= n_channels`.

Notes

With exactly two channels there is nothing to condition on, and this reduces to coherence_matrix — a useful check, not a use case.

Conditioning is linear and simultaneous at each frequency: the other channels are removed as a frequency-domain linear predictor, which is the right operation for a linear time-invariant structure and the wrong one if the mediation is nonlinear, or if the mediating channel was not measured. An unmeasured common cause is invisible here, exactly as it is in ordinary coherence — conditioning removes what is in data, and nothing else.

The bias floor applies here too: with n_d segments and n_ch - 2 conditioning channels, independent pairs sit near 1 / (n_d - n_ch + 2) rather than at 0. Conditioning also spends degrees of freedom, so partial coherence is noisier than the pairwise coherence it refines; the more channels are conditioned out, the more segments are needed to see the same contrast.
