Instantaneous

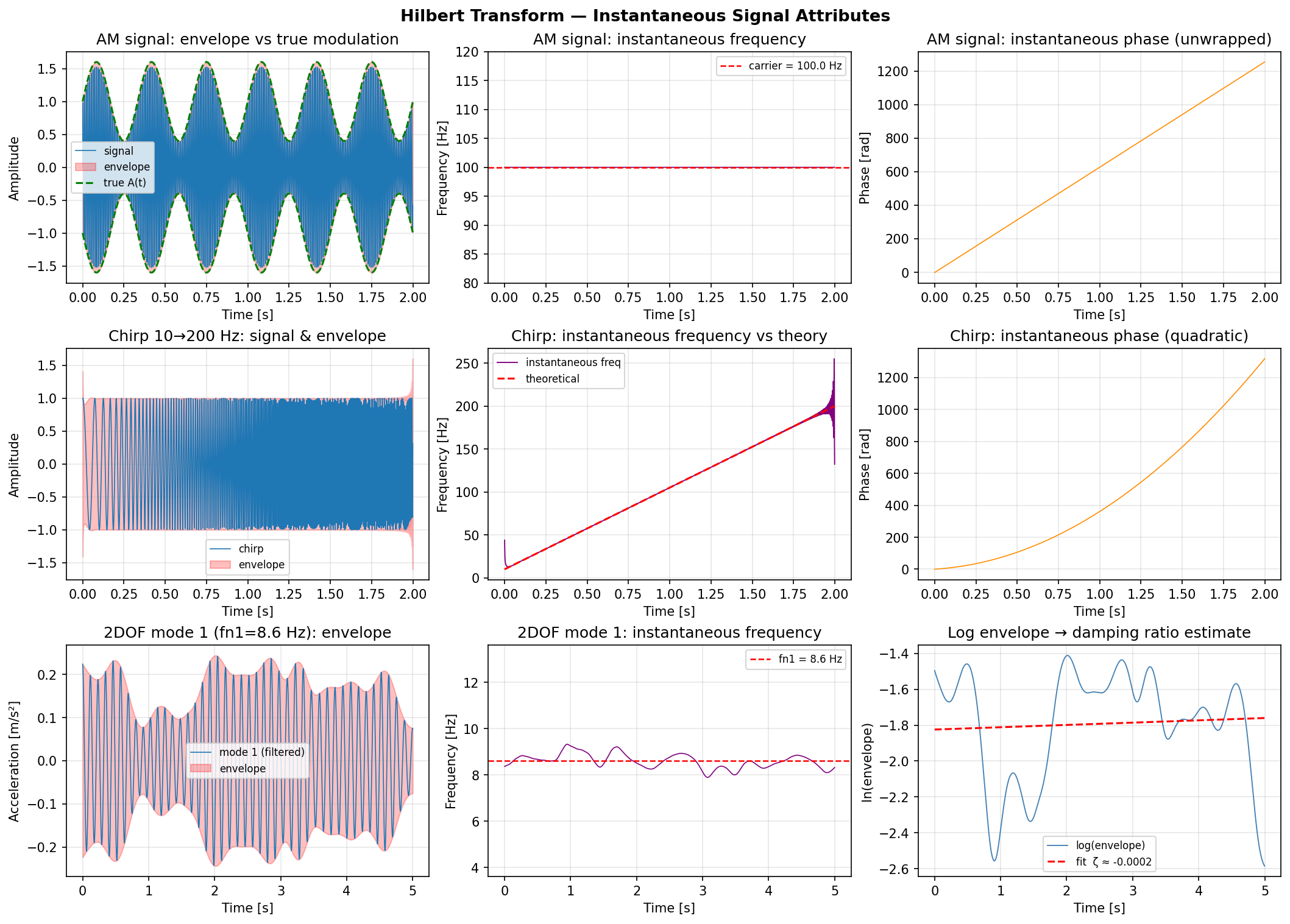

Hilbert transform and instantaneous signal attributes.

For a narrow-band or IMF signal x(t), the analytic signal z(t) = x(t) + j·H{x}(t) gives physically meaningful:

• Envelope A(t) = |z(t)| — instantaneous amplitude
• Phase φ(t) = ∠z(t) — instantaneous (unwrapped) phase [rad]
• Frequency f(t) = (1/2π) dφ/dt — instantaneous frequency [Hz]

Use hilbert_attributes for efficiency

hilbert_attributes computes all three in a single Hilbert call. Use the individual functions only when you need one attribute.

---

dspkit.instantaneous.hilbert_attributes(x, fs)

Compute envelope, phase, and instantaneous frequency in a single pass.

Equivalent to calling hilbert_envelope, instantaneous_phase, and instantaneous_freq separately, but performs the Hilbert transform only once.

Parameters:

Name	Type	Description	Default
x	(array_like, shape(N))		required
fs	float	Sampling frequency [Hz].	required

Returns:

Name	Type	Description
envelope	(ndarray, shape(N))	Instantaneous amplitude [same units as x].
phase	(ndarray, shape(N))	Instantaneous phase [rad], unwrapped.
freq	(ndarray, shape(N))	Instantaneous frequency [Hz].

Source code in dspkit/instantaneous.py

def hilbert_attributes(
    x: np.ndarray,
    fs: float,
) -> tuple[np.ndarray, np.ndarray, np.ndarray]:
    """
    Compute envelope, phase, and instantaneous frequency in a single pass.

    Equivalent to calling ``hilbert_envelope``, ``instantaneous_phase``, and
    ``instantaneous_freq`` separately, but performs the Hilbert transform only
    once.

    Parameters
    ----------
    x : array_like, shape (N,)
    fs : float
        Sampling frequency [Hz].

    Returns
    -------
    envelope : ndarray, shape (N,)
        Instantaneous amplitude [same units as x].
    phase : ndarray, shape (N,)
        Instantaneous phase [rad], unwrapped.
    freq : ndarray, shape (N,)
        Instantaneous frequency [Hz].
    """
    z = _signal.hilbert(np.asarray(x, dtype=float))
    envelope = np.abs(z)
    phase = np.unwrap(np.angle(z))
    freq = np.gradient(phase, 1.0 / fs) / (2.0 * np.pi)
    return envelope, phase, freq

---

dspkit.instantaneous.analytic_signal(x)

Compute the analytic signal via the Hilbert transform.

z(t) = x(t) + j · H{x}(t)

where H{x} is the Hilbert transform (all frequency components of x phase-shifted by -90°).

Parameters:

Name	Type	Description	Default
x	(array_like, shape(N))		required

Returns:

Name	Type	Description
z	(ndarray, complex, shape(N))

Source code in dspkit/instantaneous.py

def analytic_signal(x: np.ndarray) -> np.ndarray:
    """
    Compute the analytic signal via the Hilbert transform.

    z(t) = x(t) + j · H{x}(t)

    where H{x} is the Hilbert transform (all frequency components of x
    phase-shifted by -90°).

    Parameters
    ----------
    x : array_like, shape (N,)

    Returns
    -------
    z : ndarray, complex, shape (N,)
    """
    return _signal.hilbert(np.asarray(x, dtype=float))

---

dspkit.instantaneous.hilbert_envelope(x)

Instantaneous amplitude (signal envelope).

A(t) = |z(t)| = sqrt(x(t)² + H{x}(t)²)

For a pure tone x(t) = A cos(2π f t), the envelope is the constant A. For a modulated signal, it tracks the slow amplitude variation.

Parameters:

Name	Type	Description	Default
x	(array_like, shape(N))		required

Returns:

Name	Type	Description
envelope	(ndarray, shape(N), non - negative)

Source code in dspkit/instantaneous.py

def hilbert_envelope(x: np.ndarray) -> np.ndarray:
    """
    Instantaneous amplitude (signal envelope).

    A(t) = |z(t)| = sqrt(x(t)² + H{x}(t)²)

    For a pure tone x(t) = A cos(2π f t), the envelope is the constant A.
    For a modulated signal, it tracks the slow amplitude variation.

    Parameters
    ----------
    x : array_like, shape (N,)

    Returns
    -------
    envelope : ndarray, shape (N,), non-negative
    """
    return np.abs(_signal.hilbert(np.asarray(x, dtype=float)))

---

dspkit.instantaneous.instantaneous_phase(x)

Instantaneous phase of the analytic signal (unwrapped).

φ(t) = unwrap( arctan2( H{x}(t), x(t) ) )

Unwrapping removes 2π discontinuities so the phase is continuous. For a pure tone at frequency f, φ(t) = 2π f t + φ₀ (linear).

Parameters:

Name	Type	Description	Default
x	(array_like, shape(N))		required

Returns:

Name	Type	Description
phase	(ndarray, shape(N))	Instantaneous phase [rad], unwrapped and continuous.

Source code in dspkit/instantaneous.py

def instantaneous_phase(x: np.ndarray) -> np.ndarray:
    """
    Instantaneous phase of the analytic signal (unwrapped).

    φ(t) = unwrap( arctan2( H{x}(t), x(t) ) )

    Unwrapping removes 2π discontinuities so the phase is continuous.
    For a pure tone at frequency f, φ(t) = 2π f t + φ₀ (linear).

    Parameters
    ----------
    x : array_like, shape (N,)

    Returns
    -------
    phase : ndarray, shape (N,)
        Instantaneous phase [rad], unwrapped and continuous.
    """
    z = _signal.hilbert(np.asarray(x, dtype=float))
    return np.unwrap(np.angle(z))

---

dspkit.instantaneous.instantaneous_freq(x, fs)

Instantaneous frequency via the derivative of the unwrapped phase.

f_i(t) = (1 / 2π) · dφ/dt

For a pure sinusoid, this returns the carrier frequency everywhere (except at the edges where the derivative stencil degrades). For a chirp, it tracks the smoothly varying frequency. For broadband noise, the result is meaningless — filter or decompose first.

Uses numpy.gradient (central differences), so the output has the same length as the input.

Parameters:

Name	Type	Description	Default
x	(array_like, shape(N))		required
fs	float	Sampling frequency [Hz].	required

Returns:

Name	Type	Description
fi	(ndarray, shape(N))	Instantaneous frequency [Hz].

Source code in dspkit/instantaneous.py

def instantaneous_freq(x: np.ndarray, fs: float) -> np.ndarray:
    """
    Instantaneous frequency via the derivative of the unwrapped phase.

    f_i(t) = (1 / 2π) · dφ/dt

    For a pure sinusoid, this returns the carrier frequency everywhere
    (except at the edges where the derivative stencil degrades).
    For a chirp, it tracks the smoothly varying frequency.
    For broadband noise, the result is meaningless — filter or decompose first.

    Uses ``numpy.gradient`` (central differences), so the output has the
    same length as the input.

    Parameters
    ----------
    x : array_like, shape (N,)
    fs : float
        Sampling frequency [Hz].

    Returns
    -------
    fi : ndarray, shape (N,)
        Instantaneous frequency [Hz].
    """
    phase = instantaneous_phase(x)
    return np.gradient(phase, 1.0 / fs) / (2.0 * np.pi)
