Filters

Zero-phase IIR filtering and decimation.

All filters use Butterworth SOS design (scipy.signal.butter + sosfiltfilt) for numerical stability and zero group-delay distortion — appropriate for offline SHM analysis where phase matters.

Zero-phase vs causal

zero_phase=True (default) applies the filter twice (forward + backward), doubling the effective order and producing exactly zero phase shift. Set zero_phase=False for causal (real-time) processing.

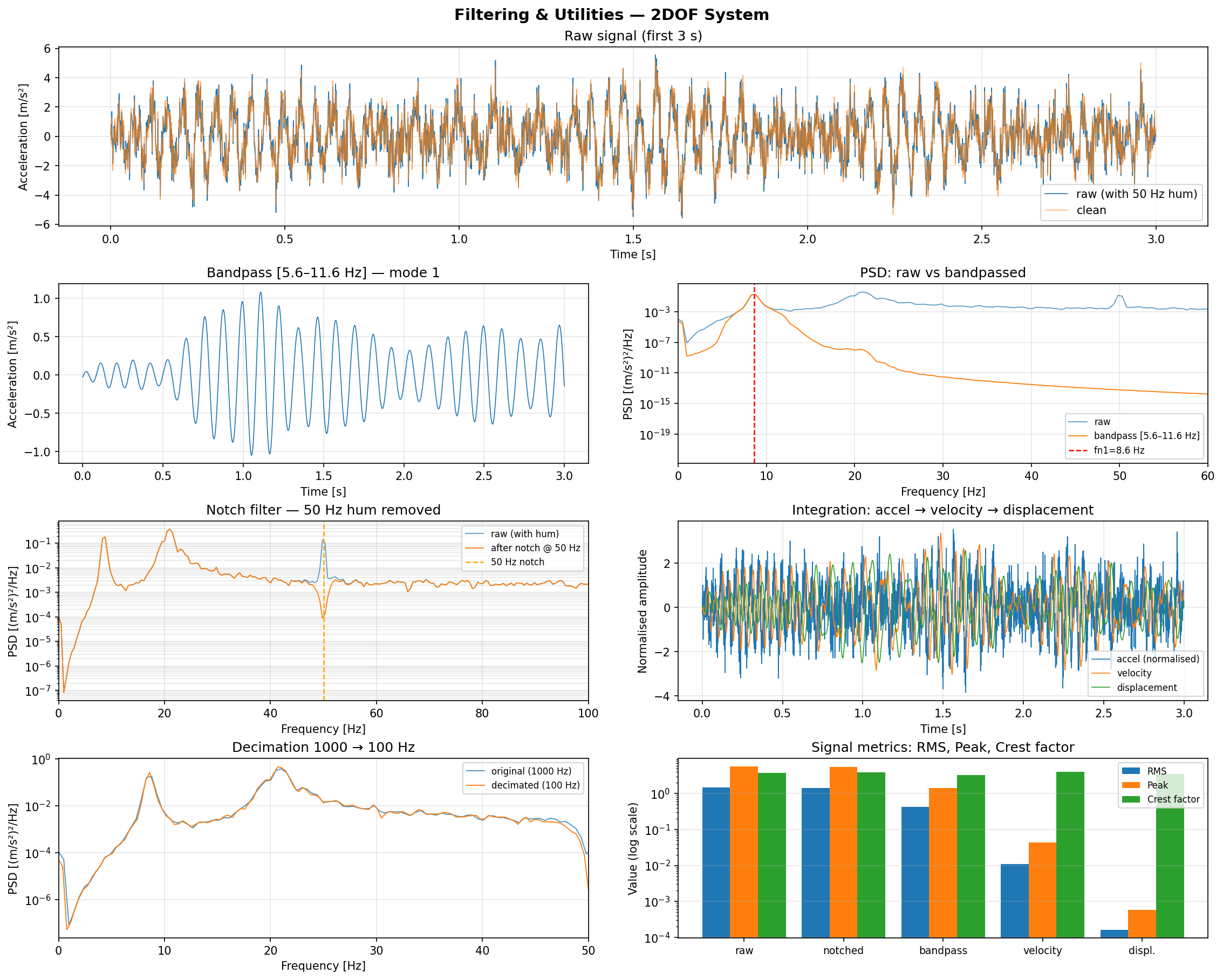

Filtering and utilities example

`dspkit.filters.lowpass(x, fs, cutoff, order=4, zero_phase=True)`

Butterworth lowpass filter.

Parameters:

Name	Type	Description	Default
`x`	`(array_like, shape(N))`	Input signal.	required
`fs`	`float`	Sampling frequency [Hz].	required
`cutoff`	`float`	-3 dB cutoff frequency [Hz].	required
`order`	`int`	Filter order. With `zero_phase=True` the effective order is doubled (forward + reverse pass).	`4`
`zero_phase`	`bool`	If `True` (default), use zero-phase filtering (`sosfiltfilt`). If `False`, use causal filtering (`sosfilt`).	`True`

Returns:

Type	Description
`(ndarray, shape(N))`

Source code in dspkit/filters.py

def lowpass(
    x: np.ndarray,
    fs: float,
    cutoff: float,
    order: int = 4,
    zero_phase: bool = True,
) -> np.ndarray:
    """
    Butterworth lowpass filter.

    Parameters
    ----------
    x : array_like, shape (N,)
        Input signal.
    fs : float
        Sampling frequency [Hz].
    cutoff : float
        -3 dB cutoff frequency [Hz].
    order : int
        Filter order. With ``zero_phase=True`` the effective order is doubled
        (forward + reverse pass).
    zero_phase : bool
        If ``True`` (default), use zero-phase filtering (``sosfiltfilt``).
        If ``False``, use causal filtering (``sosfilt``).

    Returns
    -------
    ndarray, shape (N,)
    """
    _validate_cutoff(cutoff, fs, "cutoff")
    sos = _signal.butter(order, cutoff, btype="low", fs=fs, output="sos")
    return _apply(sos, np.asarray(x, dtype=float), zero_phase)

`dspkit.filters.highpass(x, fs, cutoff, order=4, zero_phase=True)`

Butterworth highpass filter.

Parameters:

Name	Type	Description	Default
`x`	`(array_like, shape(N))`		required
`fs`	`float`	Sampling frequency [Hz].	required
`cutoff`	`float`	-3 dB cutoff frequency [Hz].	required
`order`	`int`		`4`
`zero_phase`	`bool`		`True`

Returns:

Type	Description
`(ndarray, shape(N))`

Source code in dspkit/filters.py

def highpass(
    x: np.ndarray,
    fs: float,
    cutoff: float,
    order: int = 4,
    zero_phase: bool = True,
) -> np.ndarray:
    """
    Butterworth highpass filter.

    Parameters
    ----------
    x : array_like, shape (N,)
    fs : float
        Sampling frequency [Hz].
    cutoff : float
        -3 dB cutoff frequency [Hz].
    order : int
    zero_phase : bool

    Returns
    -------
    ndarray, shape (N,)
    """
    _validate_cutoff(cutoff, fs, "cutoff")
    sos = _signal.butter(order, cutoff, btype="high", fs=fs, output="sos")
    return _apply(sos, np.asarray(x, dtype=float), zero_phase)

`dspkit.filters.bandpass(x, fs, low, high, order=4, zero_phase=True)`

Butterworth bandpass filter.

Parameters:

Name	Type	Description	Default
`x`	`(array_like, shape(N))`		required
`fs`	`float`	Sampling frequency [Hz].	required
`low`	`float`	Lower -3 dB cutoff [Hz].	required
`high`	`float`	Upper -3 dB cutoff [Hz].	required
`order`	`int`	Order of each lowpass/highpass section (total order = 2 * order).	`4`
`zero_phase`	`bool`		`True`

Returns:

Type	Description
`(ndarray, shape(N))`

Source code in dspkit/filters.py

def bandpass(
    x: np.ndarray,
    fs: float,
    low: float,
    high: float,
    order: int = 4,
    zero_phase: bool = True,
) -> np.ndarray:
    """
    Butterworth bandpass filter.

    Parameters
    ----------
    x : array_like, shape (N,)
    fs : float
        Sampling frequency [Hz].
    low : float
        Lower -3 dB cutoff [Hz].
    high : float
        Upper -3 dB cutoff [Hz].
    order : int
        Order of each lowpass/highpass section (total order = 2 * order).
    zero_phase : bool

    Returns
    -------
    ndarray, shape (N,)
    """
    _validate_cutoff(low, fs, "low")
    _validate_cutoff(high, fs, "high")
    if low >= high:
        raise ValueError(f"low ({low}) must be less than high ({high})")
    sos = _signal.butter(order, [low, high], btype="bandpass", fs=fs, output="sos")
    return _apply(sos, np.asarray(x, dtype=float), zero_phase)

`dspkit.filters.bandstop(x, fs, low, high, order=4, zero_phase=True)`

Butterworth bandstop (band-reject) filter.

Parameters:

Name	Type	Description	Default
`x`	`(array_like, shape(N))`		required
`fs`	`float`	Sampling frequency [Hz].	required
`low`	`float`	Lower edge of the stop band [Hz].	required
`high`	`float`	Upper edge of the stop band [Hz].	required
`order`	`int`		`4`
`zero_phase`	`bool`		`True`

Returns:

Type	Description
`(ndarray, shape(N))`

Source code in dspkit/filters.py

def bandstop(
    x: np.ndarray,
    fs: float,
    low: float,
    high: float,
    order: int = 4,
    zero_phase: bool = True,
) -> np.ndarray:
    """
    Butterworth bandstop (band-reject) filter.

    Parameters
    ----------
    x : array_like, shape (N,)
    fs : float
        Sampling frequency [Hz].
    low : float
        Lower edge of the stop band [Hz].
    high : float
        Upper edge of the stop band [Hz].
    order : int
    zero_phase : bool

    Returns
    -------
    ndarray, shape (N,)
    """
    _validate_cutoff(low, fs, "low")
    _validate_cutoff(high, fs, "high")
    if low >= high:
        raise ValueError(f"low ({low}) must be less than high ({high})")
    sos = _signal.butter(order, [low, high], btype="bandstop", fs=fs, output="sos")
    return _apply(sos, np.asarray(x, dtype=float), zero_phase)

`dspkit.filters.notch(x, fs, freq, q=30.0, zero_phase=True)`

IIR notch filter at a single frequency.

Common uses: remove mains hum (50 or 60 Hz) or a known harmonic.

Parameters:

Name	Type	Description	Default
`x`	`(array_like, shape(N))`		required
`fs`	`float`	Sampling frequency [Hz].	required
`freq`	`float`	Notch frequency [Hz].	required
`q`	`float`	Quality factor. Higher Q → narrower notch. Typical values: 10 (broad) to 50 (narrow). Default 30.	`30.0`
`zero_phase`	`bool`		`True`

Returns:

Type	Description
`(ndarray, shape(N))`

Source code in dspkit/filters.py

def notch(
    x: np.ndarray,
    fs: float,
    freq: float,
    q: float = 30.0,
    zero_phase: bool = True,
) -> np.ndarray:
    """
    IIR notch filter at a single frequency.

    Common uses: remove mains hum (50 or 60 Hz) or a known harmonic.

    Parameters
    ----------
    x : array_like, shape (N,)
    fs : float
        Sampling frequency [Hz].
    freq : float
        Notch frequency [Hz].
    q : float
        Quality factor. Higher Q → narrower notch.
        Typical values: 10 (broad) to 50 (narrow). Default 30.
    zero_phase : bool

    Returns
    -------
    ndarray, shape (N,)
    """
    _validate_cutoff(freq, fs, "freq")
    b, a = _signal.iirnotch(freq, q, fs=fs)
    x = np.asarray(x, dtype=float)
    if zero_phase:
        return _signal.filtfilt(b, a, x)
    return _signal.lfilter(b, a, x)

`dspkit.filters.decimate(x, fs, target_fs, zero_phase=True)`

Downsample a signal with an anti-aliasing lowpass filter.

The decimation factor must be a positive integer (fs / target_fs). For non-integer ratios, use scipy.signal.resample_poly directly.

Parameters:

Name	Type	Description	Default
`x`	`(array_like, shape(N))`		required
`fs`	`float`	Original sampling frequency [Hz].	required
`target_fs`	`float`	Target sampling frequency [Hz]. Must satisfy `fs / target_fs` is close to a positive integer.	required
`zero_phase`	`bool`	If `True` (default), use a FIR anti-aliasing filter with zero phase delay. If `False`, use an IIR (Chebyshev type I) filter (matches `scipy.signal.decimate` default).	`True`

Returns:

Name	Type	Description
`x_decimated`	`ndarray`	Downsampled signal.
`target_fs`	`float`	Actual output sampling frequency (same as `target_fs` input, returned for convenience when chaining calls).

Source code in dspkit/filters.py

def decimate(
    x: np.ndarray,
    fs: float,
    target_fs: float,
    zero_phase: bool = True,
) -> tuple[np.ndarray, float]:
    """
    Downsample a signal with an anti-aliasing lowpass filter.

    The decimation factor must be a positive integer (fs / target_fs).
    For non-integer ratios, use ``scipy.signal.resample_poly`` directly.

    Parameters
    ----------
    x : array_like, shape (N,)
    fs : float
        Original sampling frequency [Hz].
    target_fs : float
        Target sampling frequency [Hz]. Must satisfy ``fs / target_fs``
        is close to a positive integer.
    zero_phase : bool
        If ``True`` (default), use a FIR anti-aliasing filter with
        zero phase delay. If ``False``, use an IIR (Chebyshev type I)
        filter (matches ``scipy.signal.decimate`` default).

    Returns
    -------
    x_decimated : ndarray
        Downsampled signal.
    target_fs : float
        Actual output sampling frequency (same as ``target_fs`` input,
        returned for convenience when chaining calls).
    """
    ratio = fs / target_fs
    q = int(round(ratio))
    if q < 1:
        raise ValueError(f"target_fs ({target_fs}) must be less than fs ({fs})")
    if not np.isclose(ratio, q, rtol=1e-3):
        raise ValueError(
            f"fs / target_fs = {ratio:.4f} is not close to an integer. "
            "For non-integer ratios use scipy.signal.resample_poly."
        )
    ftype = "fir" if zero_phase else "iir"
    x_dec = _signal.decimate(np.asarray(x, dtype=float), q, ftype=ftype, zero_phase=zero_phase)
    return x_dec, float(target_fs)
