DSPkit

A lightweight digital signal processing toolkit for time series data.

DSPkit provides a clean, function-based API for everyday signal processing: spectral estimation, filtering, time-frequency analysis, and adaptive decomposition. It is general-purpose — nothing in it assumes a domain — though the modal analysis it also carries (FDD/EFDD) comes from vibration and structural health monitoring work. It depends only on NumPy, SciPy, and Matplotlib — no heavy ML frameworks or extra wavelet libraries required.

Modules at a glance

Module What it does
spectral Three PSD estimators — Welch, Blackman-Tukey and autoregressive — plus FFT spectrum, CSD, coherence, autocorrelation, and advice on the segment length they all depend on
filters Zero-phase Butterworth filters (LP / HP / BP / BS / notch) and decimation
utils Detrend, RMS, peak, crest factor, numerical integration and differentiation
timefreq STFT, CWT scalogram (analytic Morlet), Wigner-Ville, Smoothed Pseudo WVD, Fourier synchrosqueezing
instantaneous Hilbert transform → envelope, instantaneous phase & frequency
emd Empirical Mode Decomposition, Hilbert-Huang Transform, marginal spectrum
frf H1 / H2 / H3 estimators, MIMO FRFs with input conditioning, and the error spectrum — what no linear model can explain, in the target's own units
peaks Peak detection, bandwidth and Q-factor, harmonic identification
indicators Spectral entropy, kurtosis, skewness, RMS and frequency tracking
multisensor Correlation, coherence and PSD matrices; multiple and partial coherence
fdd Frequency Domain Decomposition (FDD / EFDD) — frequencies, mode shapes, damping
statistics Distributions, joint densities, covariance, Mahalanobis distance, normality, mutual information
plots Thin matplotlib wrappers — every function accepts an ax argument

The response-spectrum and damping tools (sdof_response, response_spectrum, log_decrement, random_decrement) live in response and are documented alongside the FRF page.

Design philosophy

  • Function-based. Every operation is a plain function f(x, fs, ...) → result. No classes to instantiate, no state to manage.
  • Engineering defaults. Parameters are chosen for typical SHM signals (1 kHz sampling, second-order structural systems). Override anything you need.
  • Composable. All plot functions accept an ax parameter so they embed naturally into any multi-panel figure layout.
  • Minimal dependencies. NumPy + SciPy + Matplotlib. The CWT uses a self-implemented FFT-based Morlet transform — no pywavelets required.

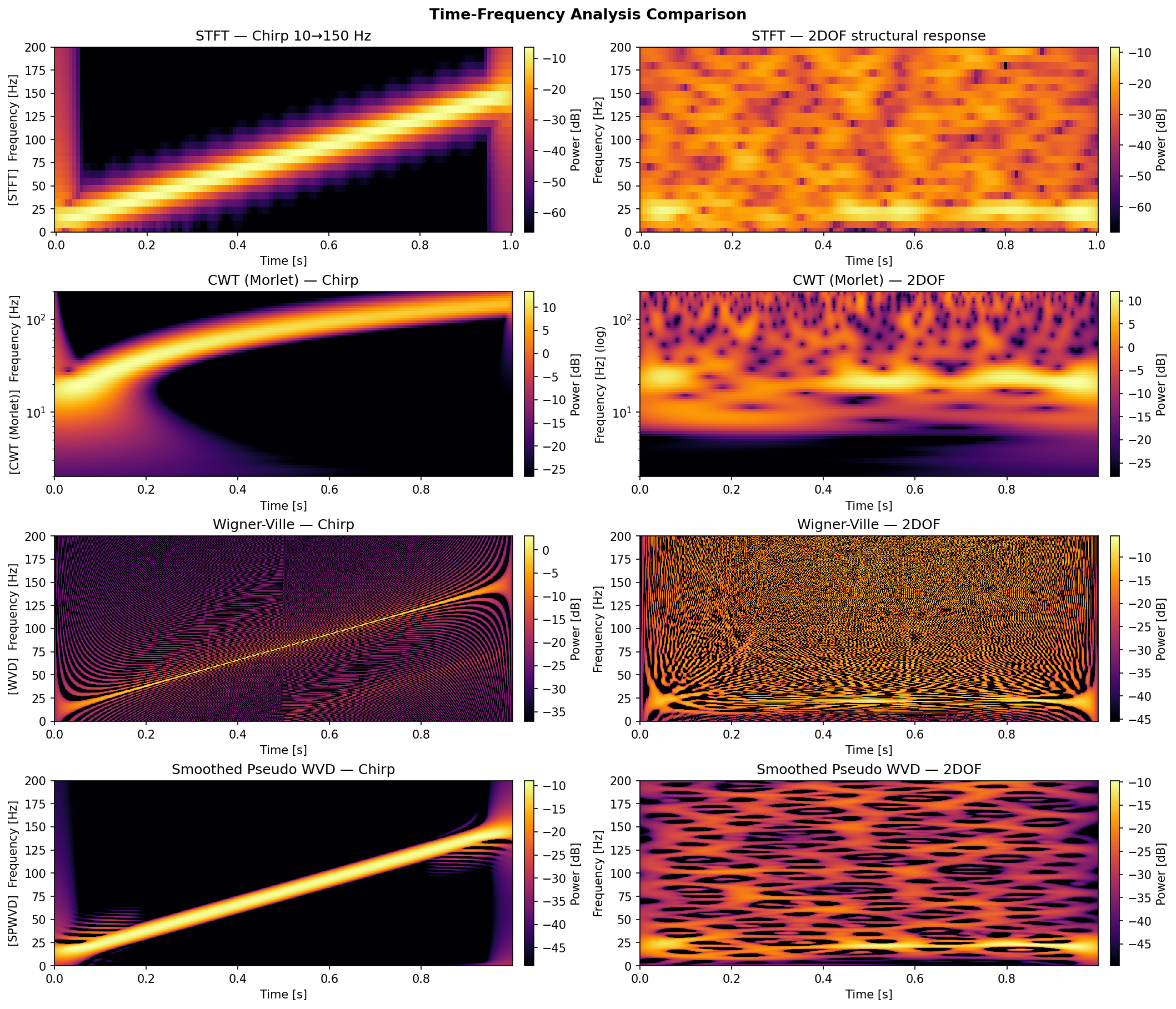

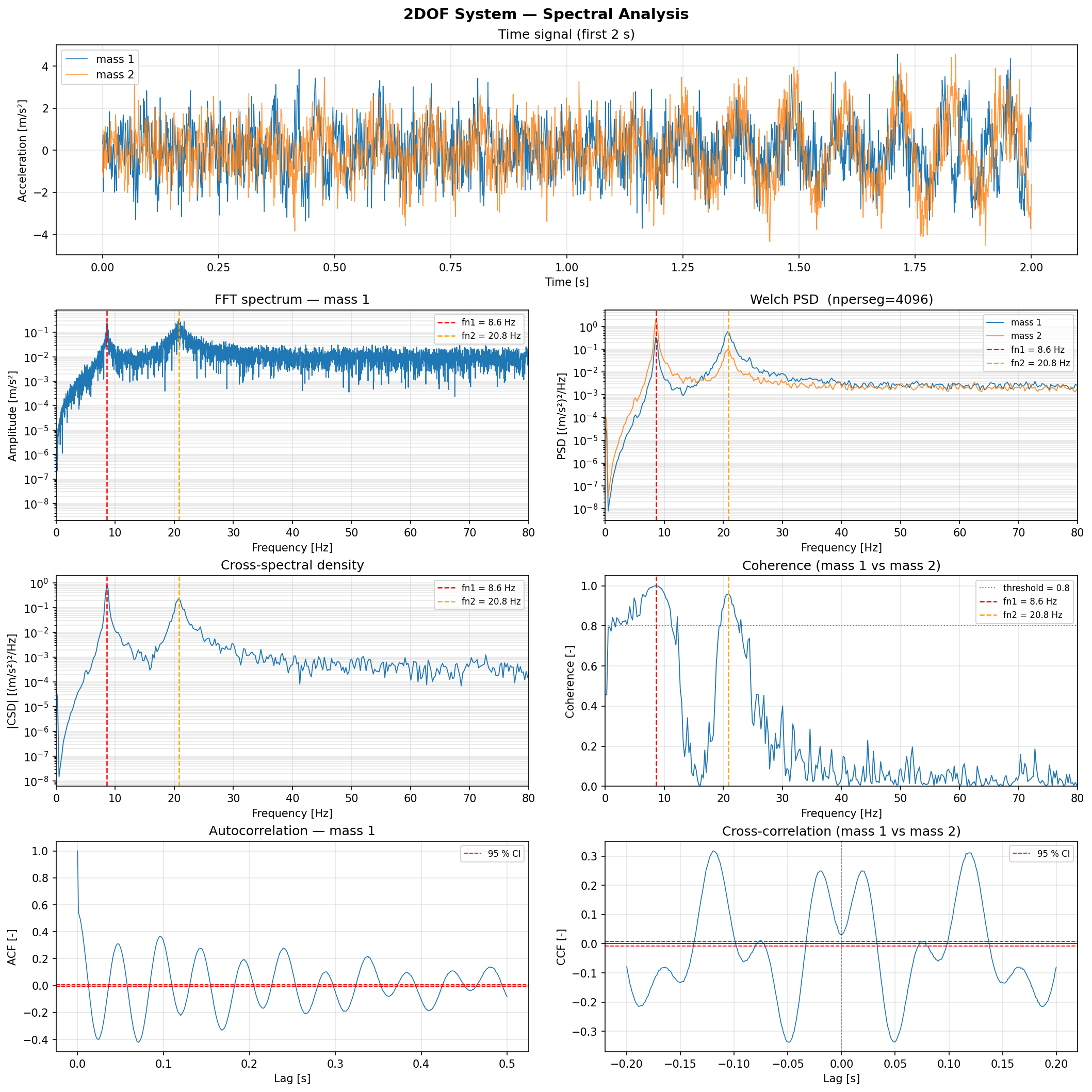

Spectral analysis Time-frequency analysis

Quick example

import dspkit as dsp
from dspkit._testing import generate_2dof, natural_frequencies_2dof

fs = 1000.0
t, a1, a2 = generate_2dof(duration=60.0, fs=fs, noise_std=1.0,
                           output="acceleration", seed=42)

fn1, fn2 = natural_frequencies_2dof()

# Welch PSD
freqs, Pxx = dsp.psd(a1, fs, nperseg=4096)
dsp.plot_psd(freqs, Pxx, xlim=(0, 80), title="Welch PSD")

# Time-frequency: CWT scalogram
import numpy as np
analysis_freqs = np.geomspace(2.0, fs / 4, num=100)
f, t_cwt, W = dsp.cwt_scalogram(a1[:2048], fs, freqs=analysis_freqs)
dsp.plot_scalogram(f, t_cwt, W, title="CWT Scalogram")
